Product Type:
Cable Railing Accessory

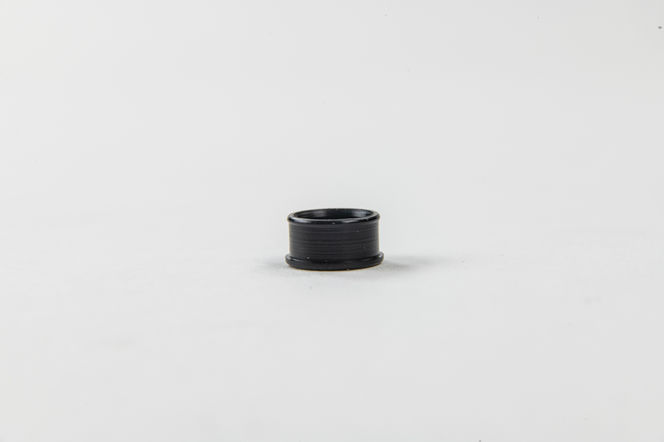

Cable grommets are offered for popular cable diameters of 1/8”, 3/16” and 1/4”. They help prevent rust in exterior applications or elsewhere where moisture is a factor, by providing a barrier between the cable and the painted or powder-coated surface through which the cable is drawn when being installed. They help prevent noise in interior applications by dampening vibration in the cables. Ultra-tec® cable grommets are installed (after the paint or powder coating is applied) into holes in intermediate posts, cable braces and, in the case of the Invisiware® Radius Ferrule, Push-Lock®, and Pull-Lock® fittings into the end post holes through which the cable exits. They are offered in black UV resistant Delrin®.
INTERMEDIATE POST MATERIAL (NOT SLOTTED FOR STAIRWAY) | INTERMEDIATE POST MATERIAL (NOT SLOTTED FOR STAIRWAY) | INTERMEDIATE POST MATERIAL (NOT SLOTTED FOR STAIRWAY) | INTERMEDIATE POST MATERIAL (NOT SLOTTED FOR STAIRWAY) | INTERMEDIATE POST MATERIAL SLOTTED FOR STAIRWAY PITCH UP TO 37° | INTERMEDIATE POST MATERIAL SLOTTED FOR STAIRWAY PITCH UP TO 37° | INTERMEDIATE POST MATERIAL SLOTTED FOR STAIRWAY PITCH UP TO 37° | |
CABLE DIAMETER | SCHEDULE 40 1-1/4" 1-1/2" 2" PIPE | SQ. OR RECT. TUBE WITH .120" WALL | 1/4" CABLE BRACE OR RECT. TUBE WITH .250" WALL | 1/2" FLAT BAR | SCHEDULE 40 1-1/4" 1-1/2" 2" PIPE | SQ. OR RECT. TUBE WITH .120" WALL | 1/4" CABLE BRACE OR RECT. TUBE WITH .250" WALL |
1/8", 3/16" | CH-G-C6-1 | CH-G-C6-2 | CH-G-C6-4 | CH-G-C6-.500 | CH-GI-C6-1 | CH-GI-C6-2 | CH-GI-C6-4 |
1/4" | CH-G-C8-1 | CH-G-C8-2 | CH-G-C8-4 | NA | CH-GI-C8-1 | CH-GI-C8-2 | CH-GI-C8-4 |
